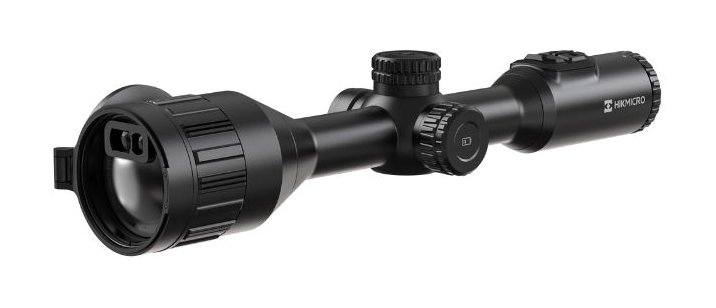

Stellar 3.0 THERMAL RIFLESCOPE
Product Description
SKU HM-SH50L3.0 HM-SQ50L3.0 HM-SX60L3.0
MAIN
Sensor 384×288px @ 12µm 640 x 512 @ 12µm 1280 x 1024 @ 12µm
Objective Lens (Focal length) 50 mm / F1.0 50 mm / F1.0 60 mm / F1.0
Detection Range (Human) 2600m 2600m 3100m
Magnification 6.0× - 24.0× 3.6×-26.6× 2.5×-28.5×
SENSOR
Type Vox Uncooled Focal Plane Arrays Vox Uncooled Focal Plane Arrays Vox Uncooled Focal Plane Arrays
Resolution, pixels 384×288px 640 x 512 px 1280 x 1024 px
Pixel pitch, µm 12µm 12µm 12µm
Frame rate, Hz 50 Hz 50 Hz 25 Hz
NETD <15mK <15mK <18mK
OPTICS
Objective lens F1.0 F1.0 F1.0
Focal Length 50mm 50mm 60mm
Magnification (Optical) 6.0x 3.6x 2.5x
Magnification (Digital) Support 1× step value of continuous zooming Support 1× step value of continuous zooming Support 1× step value of continuous zooming
Field of view 5.3° × 4.0°/9.3m x 7.0m 8.8°×7.0°/15.4 m×12.3 m 14.6°×11.7°/25.6m×20.5m
DISPLAY
Type 1.03-inch OLED 1.03-inch OLED 1.03-inch OLED
Resolution, Pixels 2560 × 2560 2560 × 2560 2560 × 2560
Eye Relief 50mm 50mm 60mm
Colour Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Picture-in-Picture Yes Yes Yes
Reticle options
Number of preloaded reticles 5 Reticle choices 5 Reticle choices 5 Reticle choices
Reticle Colours White, Green, Red White, Green, Red White, Green, Red
Video Recorder
Video recording Yes Yes Yes
Picture snapshot Yes Yes Yes
Audio recording Yes Yes Yes
Recoil-activated recording Yes Yes Yes
Build in memory, Gb 64 Gb 64 Gb 64 Gb
Additional features
Hot Tracking YES YES YES
WiFI YES YES YES
HIKMICRO Connect App support YES YES YES
Zoom Pro YES YES YES
Image Pro 2.0 YES YES YES
HSIS (HIKMICRO Shutterless Image System) YES YES YES
Environmental
Recoil resistance 1000 g/0.4 ms 1000 g/0.4 ms 1000 g/0.4 ms
Degree of protection, IP code IP67 IP67 IP67
Water protection Protected against temporary submersion in water Protected against temporary submersion in water Protected against temporary submersion in water
Operating temperature range -30 °C to 55 °C -30 °C to 55 °C -30 °C to 55 °C
WEIGHT & SIZE
Dimensions, mm 418.5 mm × 84 mm × 92.4 mm 422.5 mm×88.4 mm×74.5 mm 452.6mm x 94.3mm x78.9mm
Weight, kg 880 g without external battery 860 g without external battery 1000g without external battery
POWER SUPPLY
"Operating time on battery
(WiFi & Hot tracking disabled)" Up to 9 hours continuous running Up to 9 hours continuous running Up to 10 hours continuous running
Charging interface USB-C USB-C USB-C
Battery type Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
Laser Rangefinder
Safety Class for Laser Class1 Class1 Class1
Wavelength 905 nm 905 nm 905 nm
Max. Measuring Range 1000 m 1000 m 1000 m
Measurement Accuracy ±1 m ±1 m ±1 m
Min. Measuring Range 10 m 10 m 10 m
Ballistic Calculator Yes Yes Yes
"Warranty Period
Main Unit" 3 Years 3 Years 3 Years
