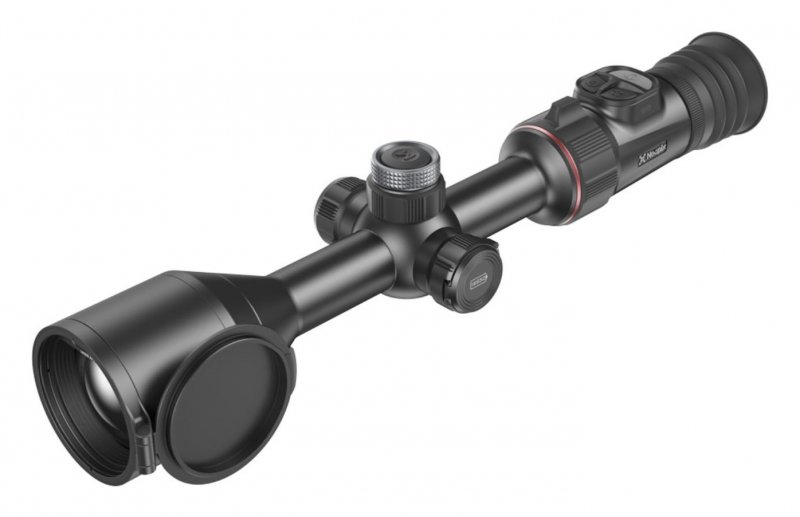

NocPix Ace 2 Series Thermal Rifle Scope

Ace 2 H35 R

Nocpix ACE 2 H35R Thermal Scope
Advanced Thermal Imaging. Exceptional Long-Range Performance.

The Nocpix ACE 2 H35R thermal scope combines advanced thermal imaging technology, intelligent image processing and integrated range-finding capabilities in a compact, rugged 30mm tube platform. Featuring a 640 × 512 12μm VOx thermal sensor, fast 60Hz Gen-3 thermal detection, a 50mm F0.9 objective lens and an impressive 12mK NETD, the ACE 2 H35R is designed to deliver detailed, smooth thermal imagery in challenging conditions.

With 2–20× magnification, a quoted detection range of up to 2,600m and an integrated 1200m Class 1 laser range finder, the H35R provides a powerful combination of observation, ranging and ballistic functionality in one advanced thermal optic.

50mm F0.9 Objective Lens

The ACE 2 H35R features a large 50mm F0.9 objective lens, designed to maximise infrared light transmission and help produce a detailed thermal image, particularly when observing distant heat signatures.

Combined with its 640 × 512 resolution, 12μm VOx thermal sensor, 12mK NETD and 60Hz frame rate, the H35R is engineered to provide excellent thermal sensitivity and smooth image performance.

Its 12.6° × 10.1° field of view offers a useful balance between situational awareness and magnification, while the Central Focus System makes focusing straightforward.

2–20× Magnification & Ocular Zoom 2.0

With a magnification range of 2–20×, the ACE 2 H35R provides flexibility for different viewing distances. Ocular Zoom 2.0 further enhances the viewing experience, helping create a more immersive image through the high-resolution AMOLED display.

The 2560 × 2560 AMOLED display provides a sharp and detailed viewing platform, allowing you to make the most of the thermal sensor's 640 × 512 output.

Vision+ & Reality+ 2.0 AI

Nocpix's Vision+ and Reality+ 2.0 AI technology is designed to enhance thermal imagery and improve the visibility of detail within the scene. The ACE 2 H35R also features Dual Clarity Mode, with dedicated settings for still and moving scenes.

Choose from seven distinct colour palettes to customise the thermal image according to your environment and viewing preference.

Integrated 1200m Laser Range Finder 2.0

The ACE 2 H35R incorporates a 1200m Class 1 laser range finder, providing accurate distance information directly through the optic. This integrated system eliminates the need to carry a separate range-finding device and works alongside the scope's advanced ballistic features.

Ballistic Calculation 2.0

The Ballistic Calculation 2.0 system provides integrated ballistic functionality designed to assist with trajectory calculations. Combined with the built-in laser range finder, it gives users access to important distance and ballistic information without leaving the scope.

Advanced Dual-Battery System

The H35R features a 4000mAh built-in battery combined with a replaceable 18650 battery, providing up to 7 hours of maximum operating time.

Its reverse-polarity battery design makes battery changes easier, particularly when operating in darkness or low-light conditions. The ACE 2 platform also delivers 14% longer battery life than the ACE 1, helping extend operating time in the field.

Full Magnesium Construction

Built around a 30mm tube, the ACE 2 H35R features a full magnesium body designed to provide a strong and durable construction while maintaining a practical form factor.

With an IP67 rating, the H35R is designed to withstand demanding outdoor conditions, while its 30mm tube makes it compatible with 30mm mounts.

Built-In Photo, Video & Audio Recording

The ACE 2 H35R includes integrated photo, video and microphone recording, allowing you to capture thermal footage and images directly from the optic.

With 64GB of storage, there is plenty of onboard capacity for recording and storing your thermal imaging sessions.

Nocpix ACE 2 H35R Key Features
30mm tube
Gen-3 60Hz thermal detector
50mm F0.9 objective lens
640 × 512 12μm VOx thermal sensor
12mK NETD
2–20× magnification
2,600m detection range
1200m Class 1 laser range finder
Laser Range Finder 2.0
Ballistic Calculation 2.0
Vision+ & Reality+ 2.0 AI
Dual Clarity Mode – Still/Motion
Central Focus System
Ocular Zoom 2.0
2560 × 2560 AMOLED display
7 distinct colour palettes
Full magnesium body
Built-in 4000mAh + replaceable 18650 battery
Up to 7 hours operating time
14% longer battery life than ACE 1
Reverse-polarity battery system
Built-in microphone
Photo and video recording
64GB memory
IP67 protection
30mm compatible mount
Nocpix ACE 2 H35R Specifications
Specification    ACE 2 H35R
Model    ACE 2 H35R
Magnification    2–20×
Objective Lens    50mm F0.9
Thermal Resolution    640 × 512
Thermal Sensor    12μm VOx
NETD    12mK
Frame Rate    60Hz
Field of View    12.6° × 10.1°
Detection Range    Up to 2,600m
Display    AMOLED
Display Resolution    2560 × 2560
Maximum Operating Time    Up to 7 hours
Battery    4000mAh built-in + replaceable 18650
Laser Range Finder    Up to 1,200m
Laser    Class 1
Memory    64GB
Microphone    Yes
Protection Rating    IP67
Compatible Mount    30mm
Dimensions    367 × 65 × 92mm
The ACE 2 H35R – Compact, Intelligent Thermal Performance

The Nocpix ACE 2 H35R delivers an impressive combination of thermal sensitivity, image quality and integrated technology in a compact 30mm tube design. Its 50mm F0.9 lens, 640 × 512 12μm sensor, 12mK NETD and 60Hz refresh rate provide the foundation for detailed and responsive thermal imaging.

Add Vision+ and Reality+ 2.0 AI processing, Ocular Zoom 2.0, Ballistic Calculation 2.0 and a 1200m laser range finder, and the H35R becomes a highly versatile thermal optic designed for demanding long-range applications.

With a durable magnesium construction, IP67 protection, dual-battery system, 64GB storage and integrated recording, the ACE 2 H35R is built to provide advanced thermal performance while remaining practical for use in the field.

Nocpix ACE 2 H35R — advanced thermal imaging, intelligent technology and long-range capability in one compact package.

Ace 2 H50R

Nocpix ACE 2 H50R Thermal Scope
Premium Thermal Imaging with Long-Range Precision

The Nocpix ACE 2 H50R thermal scope combines advanced thermal imaging, intelligent AI image processing, integrated laser range finding and ballistic calculation in a rugged and compact 30mm tube platform. Featuring a 640 × 512 12μm VOx thermal sensor, 60Hz frame rate, 12mK NETD and a high-performance 50mm F0.9 objective lens, the ACE 2 H50R is engineered to deliver detailed thermal imagery and reliable performance in demanding conditions.

With 3–24× magnification, a quoted detection range of up to 2,600m and an integrated 1200m Class 1 laser range finder, the H50R provides a powerful combination of thermal observation, ranging and ballistic functionality.

50mm F0.9 Objective Lens

The ACE 2 H50R features a large 50mm F0.9 objective lens, designed to maximise infrared transmission and provide excellent thermal sensitivity. Combined with its 640 × 512 12μm thermal sensor and 12mK NETD, the H50R is capable of revealing fine temperature differences and delivering detailed thermal imagery.

The 8.8° × 7.0° field of view provides a focused viewing perspective suited to longer-range observation, while the Central Focus System allows intuitive focus adjustment without taking your attention away from the viewing experience.

3–24× Magnification & Ocular Zoom 2.0

Offering 3–24× magnification, the ACE 2 H50R provides flexibility across a wide range of viewing distances. Ocular Zoom 2.0 combines hybrid zoom technology with lossless detail and an enhanced viewing experience, while maintaining reticle accuracy throughout the zoom range.

The high-resolution 2560 × 2560 AMOLED display presents thermal imagery with excellent clarity, helping you make the most of the H50R's detailed sensor output.

Vision+ & Reality+ 2.0 AI Image Processing

The ACE 2 H50R incorporates Nocpix's advanced Vision+ and Reality+ 2.0 AI image processing, designed to enhance image detail and produce more natural-looking thermal imagery.

Dual Clarity Mode provides dedicated Still and Motion settings. Motion Mode is designed for smoother viewing when tracking movement, while Still Mode prioritises fine image detail for identification.

The H50R also offers seven distinct colour palettes, allowing the thermal display to be tailored to different conditions and viewing preferences.

Integrated 1200m Laser Range Finder 2.0

The 1200m integrated Class 1 laser range finder provides distance information directly through the optic. Nocpix's updated LRF 2.0 system is designed to provide fast and precise ranging, with the manufacturer stating that the new system offers improved optical sharpness and faster ranging in challenging conditions.

Ballistic Calculation 2.0

The integrated Ballistic Calculation 2.0 system works alongside the laser range finder to provide advanced ballistic functionality. The system can account for factors including distance, angle, wind drift and environmental conditions when calculating an aiming solution.

The ACE 2 H50R features a 4000mAh built-in battery combined with a replaceable 18650 battery, providing up to 7 hours of maximum operating time.

The reverse-polarity battery design makes changing the external battery easier in low-light conditions, while the ACE 2 platform provides 14% longer battery life than the previous ACE generation.

Full Magnesium Body & IP67 Protection

Built around a 30mm tube, the H50R features a full magnesium body designed to provide a robust yet practical construction for demanding outdoor use.

With an IP67 protection rating, the ACE 2 H50R is designed to offer protection against dust and water, while the 30mm tube makes it compatible with suitable 30mm mounting systems.

Photo, Video & Audio Recording

The H50R includes integrated photo, video and microphone recording, allowing you to capture thermal footage and images directly from the optic.

With 64GB of onboard storage, there is plenty of capacity for saving recorded footage and photographs.

Nocpix ACE 2 H50R Key Features
30mm tube
Gen-3 60Hz thermal detector
640 × 512 thermal resolution
12μm VOx thermal sensor
12mK NETD
50mm F0.9 objective lens
3–24× magnification
2,600m detection range
1200m Class 1 laser range finder
LRF 2.0
Ballistic Calculation 2.0
Vision+ & Reality+ 2.0 AI
Dual Clarity Mode – Still/Motion
Central Focus System
Ocular Zoom 2.0
2560 × 2560 AMOLED display
7 distinct colour palettes
Full magnesium body
4000mAh built-in + replaceable 18650 battery
Up to 7 hours operating time
14% longer battery life than ACE 1
Reverse-polarity battery system
Photo, video and microphone recording
64GB storage
IP67 protection
30mm compatible mount
Nocpix ACE 2 H50R Specifications
Specification    ACE 2 H50R
Model    ACE 2 H50R
Magnification    3–24×
Objective Lens    50mm F0.9
Thermal Resolution    640 × 512
Thermal Sensor    12μm VOx
NETD    ≤12mK
Frame Rate    60Hz
Field of View    8.8° × 7.0°
Detection Range    Up to 2,600m
Display    AMOLED
Display Resolution    2560 × 2560
Maximum Operating Time    Up to 7 hours
Battery    4000mAh built-in + replaceable 18650
Laser Range Finder    Up to 1,200m
Laser    Class 1
Memory    64GB
Microphone    Yes
Protection Rating    IP67
Compatible Mount    30mm
Dimensions    383 × 70 × 92mm
The ACE 2 H50R – Advanced Thermal Performance in a Compact Platform

The Nocpix ACE 2 H50R brings together high-resolution thermal imaging, intelligent image enhancement, integrated ranging and advanced ballistic functionality in a compact 30mm tube design.

Its combination of a 50mm F0.9 lens, 640 × 512 12μm sensor, 12mK NETD, 60Hz imaging, 3–24× magnification and 1200m LRF makes the H50R a highly capable thermal optic for demanding long-range applications.

With Ocular Zoom 2.0, Vision+ and Reality+ 2.0 AI, Ballistic Calculation 2.0, dual-battery power and integrated recording, the ACE 2 H50R is designed to deliver a premium thermal viewing experience with the features needed for extended use in the field.

Ace 2 S60R

Nocpix ACE 2 S60R Thermal Scope
Ultra-High-Resolution Thermal Imaging for Long-Range Performance

The Nocpix ACE 2 S60R thermal scope is the flagship model in the ACE 2 range, combining an ultra-high-resolution 1280 × 1024 12μm thermal sensor, large 60mm F1.0 objective lens, advanced AI image processing and integrated laser range finding.

Designed for demanding long-range thermal imaging, the S60R delivers exceptional levels of thermal detail through its Gen-3 HD thermal detector, NETD ≤12mK performance and 30/60Hz frame-rate options. With 2–20× magnification, a 14.7° × 11.7° field of view and integrated 1200m LRF 2.0, the S60R provides a powerful combination of image quality, observation and ranging capability.

At the centre of the ACE 2 S60R is its large 60mm F1.0 objective lens, designed to maximise infrared transmission and provide exceptional detail when viewing distant heat signatures.

The S60R pairs this optical system with a 1280 × 1024, 12μm thermal sensor and ≤12mK NETD, allowing it to detect subtle temperature differences and produce highly detailed thermal imagery.

Its 14.7° × 11.7° field of view provides a broader viewing perspective than the H50R, making the S60R particularly well suited to situations where both detail and situational awareness are important.

2–20× Magnification & Ocular Zoom 2.0

The ACE 2 S60R provides 2–20× magnification, offering flexibility from wider-area observation through to detailed long-range viewing.

Nocpix's Ocular Zoom 2.0 incorporates hybrid zoom technology and lossless detail, while providing 60mm eye relief and a 10mm exit pupil for a more comfortable viewing experience.

The result is an immersive viewing experience through the high-resolution 2560 × 2560 AMOLED display.

1280 × 1024 Gen-3 HD Thermal Sensor

One of the S60R's defining features is its 1280 × 1024 thermal resolution, giving it twice the pixel count of the 640 × 512 sensors used in the H50R and H35R.

Combined with 12μm pixel pitch, ≤12mK NETD and 30/60Hz operation, the S60R is designed to deliver highly detailed thermal imagery with smooth performance. Nocpix describes its ACE 2 thermal platform as using a self-developed Gen-3 HD sensor with NETD ≤12mK.

Vision+ & Reality+ 2.0 AI

The S60R incorporates Nocpix's latest Vision+ and Reality+ 2.0 AI image processing, designed to enhance image detail and produce clearer, more natural-looking thermal imagery.

Its Dual Clarity Mode provides Still and Motion modes, allowing the image processing to be optimised for either fine detail or moving scenes.

With seven distinct colour palettes, the S60R offers multiple ways to configure the thermal image for different conditions and personal preferences.

Integrated 1200m Laser Range Finder 2.0

The S60R features an integrated 1200m Class 1 laser range finder, putting distance measurement directly within the optic.

Nocpix's LRF 2.0 system is designed to provide fast and precise ranging, with the manufacturer highlighting improved sharpness and faster ranging performance in challenging conditions.

Ballistic Calculation 2.0

The integrated Ballistic Calculation 2.0 system combines distance information from the LRF with ballistic calculations to provide an advanced aiming solution.

The ACE 2 ballistic system is designed to take factors such as distance, angle, wind drift and environmental conditions into account, providing additional information for long-range shooting applications.

Central Focus System

The Central Focus System positions the focus control centrally for intuitive adjustment. This allows focus changes to be made while maintaining your viewing position and keeping attention on the target.

This is particularly useful when operating the optic in low-light conditions where quick, precise adjustments are important.

Long-Lasting Dual Battery System

The ACE 2 S60R combines a 4000mAh built-in battery with a replaceable 18650 battery, providing up to 8 hours of maximum operating time.

The reverse-polarity external battery system is designed to make battery changes easier in darkness, while the ACE 2 platform provides 14% longer battery life than the previous generation.

Full Magnesium Body

The S60R features a full magnesium body, combining a robust construction with a practical form factor.

The ACE 2 platform is designed to be lighter than the previous generation, with Nocpix stating that the magnesium construction contributes to a weight reduction of up to 25%, with the ACE 2 series under 1000g.

The S60R also features IP67 protection and a 30mm tube, making it compatible with suitable 30mm mounting systems.

Photo, Video & Microphone Recording

The ACE 2 S60R includes integrated photo, video and microphone recording, allowing thermal footage and images to be captured directly through the optic.

With 64GB of onboard storage, users have substantial capacity for saving recorded content.

Nocpix ACE 2 S60R Key Features
30mm tube
Gen-3 HD 1280 × 1024 thermal detector
30/60Hz frame rate
60mm F1.0 objective lens
1280 × 1024 thermal resolution
12μm VOx thermal sensor
≤12mK NETD
2–20× magnification
14.7° × 11.7° field of view
1200m Class 1 laser range finder
LRF 2.0
Ballistic Calculation 2.0
Vision+ & Reality+ 2.0 AI
Dual Clarity Mode – Still/Motion
Central Focus System
Ocular Zoom 2.0
2560 × 2560 AMOLED display
7 distinct colour palettes
Full magnesium body
4000mAh built-in + replaceable 18650 battery
Up to 8 hours operating time
14% longer battery life than previous generation
Reverse-polarity battery system
Photo, video and microphone recording
64GB storage
IP67 protection
30mm compatible mount
Nocpix ACE 2 S60R Specifications
Specification    ACE 2 S60R
Model    ACE 2 S60R
Magnification    2–20×
Objective Lens    60mm F1.0
Thermal Resolution    1280 × 1024
Thermal Sensor    12μm VOx
NETD    ≤12mK
Frame Rate    30/60Hz
Field of View    14.7° × 11.7°
Detection Range    Long-range thermal detection
Display    AMOLED
Display Resolution    2560 × 2560
Maximum Operating Time    Up to 8 hours
Battery    4000mAh built-in + replaceable 18650
Laser Range Finder    Up to 1,200m
Laser    Class 1
Memory    64GB
Microphone    Yes
Protection Rating    IP67
Compatible Mount    30mm
Dimensions    397 × 73 × 92mm
The ACE 2 S60R – Nocpix's High-Resolution Flagship Thermal Scope

The Nocpix ACE 2 S60R represents the high-resolution end of the ACE 2 thermal scope range. Its combination of a 1280 × 1024 12μm thermal sensor, 60mm F1.0 lens, ≤12mK NETD and 30/60Hz imaging provides a substantial step up in thermal detail.

With Ocular Zoom 2.0, Vision+ and Reality+ 2.0 AI processing, Dual Clarity Mode, integrated LRF 2.0 and Ballistic Calculation 2.0, the S60R brings together advanced imaging and intelligent ranging technology in a single optic.

The result is a feature-rich long-range thermal scope designed for users who prioritise thermal resolution, image quality and an immersive viewing experience.

Nocpix ACE 2 S60R — maximum thermal detail, intelligent ranging and next-generation performance.
